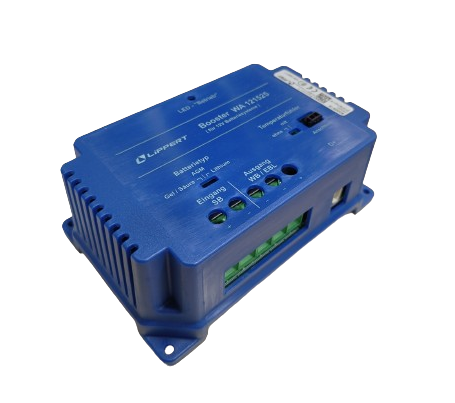

The WA12525 amplifier is used to optimally charge 12V 6-Cell Lead Acid, Lead Gel, AGM and LiFePo4 batteries in RVs while driving, regardless of alternator voltage.
The amplifier is a clocked buck/buck converter, compensating for fluctuating alternator voltage and providing a high charging current.
Average charging current 25A, briefly 30A.
Especially suitable and recommended for vehicles with the EURO6 standard.
Temperature compensated charging with an optional temperature sensor (not included).
Charging voltage of up to 14.7V depending on the type of battery chosen.
IUOU load characteristic.
