CBE PC 100 switchboard

Connection box: Pump relay to operate large pumps without problems. Battery isolation relay to recharge the second battery while driving. Refrigerator relay to turn off the refrigerator when the vehicle is stopped.

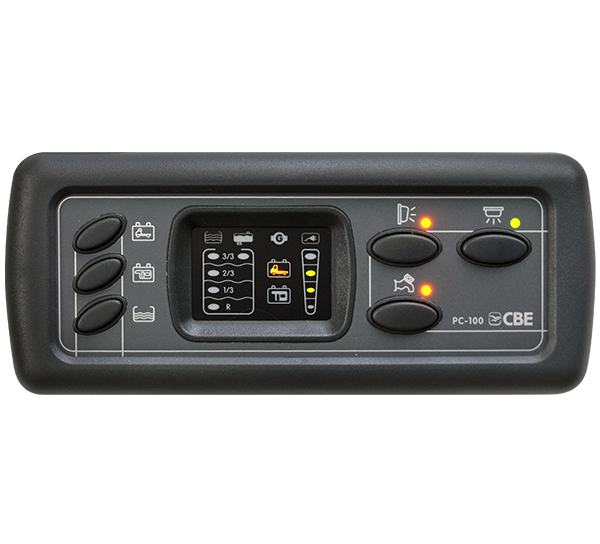

9 fine fuses for light - refrigerator - pump - heating - step - solar, etc. Analog display panel: 12V main switch with control LED, pump switch with control LED, fresh water indicator with 4 LED, indicator Full waste water LED, battery voltage indicator for starter battery and passenger compartment with 4 LEDs, control LED for charging process via alternator, 230V control LED.

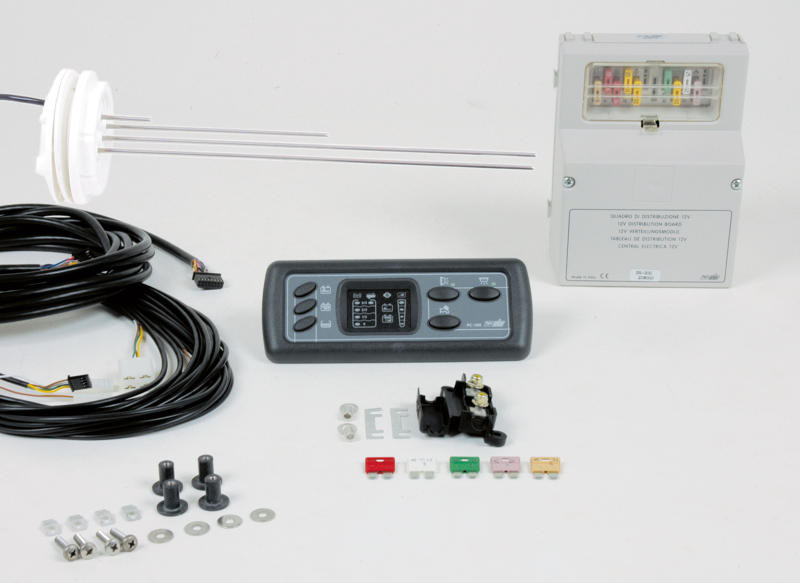

Scope of delivery: Tank probe for PC 100, 400 mm long, can be shortened.

Cable from module to panel, 2 rubber probes for waste water, cable to clean water tank and waste water tank, safety switch.

2 50A fuses.
