DOMETIC spare parts

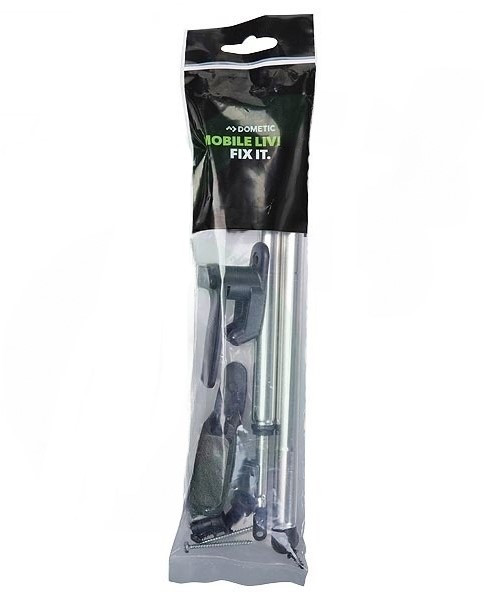

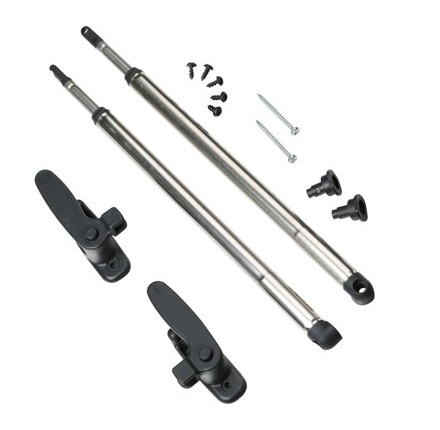

Telescopic arm kit for DOMETIC S4/S5 windows

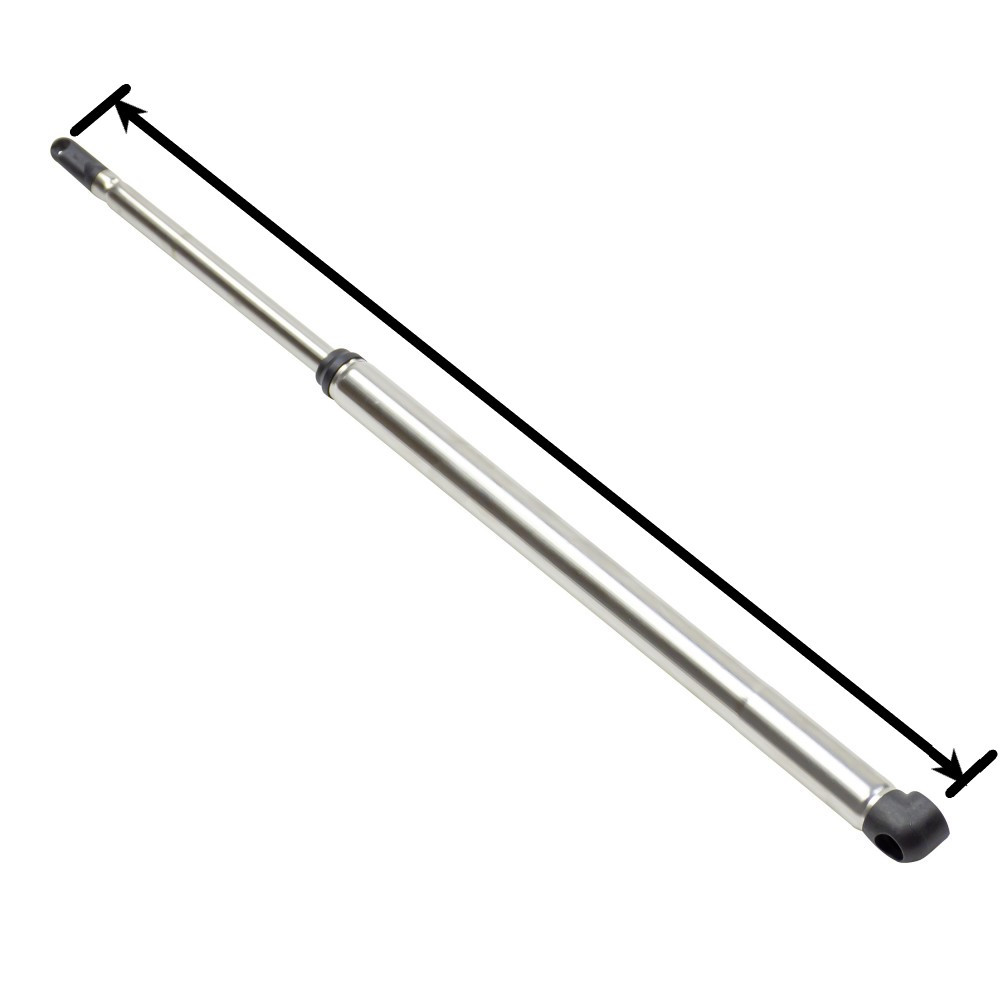

Length of the Window Exhibitor, measured when closed, from the pawl to the drilled hole (see photo #2 for measurement):
- For high window 300 mm: 9,5 cm
- For high window 350 mm: 13,3 cm
- For high window 400 mm: 17,5 cm
- For high window 450 mm: 20,7 cm
- For high window 500 mm: 25,1 cm
- For high window 550 mm: 28 cm
- For high window 600 mm: 32,4 cm
Anecdote: The necessary size of the arms corresponds to the height of the window (indicated on the glass label)
