ELEKSOL 300Ah Lithium Battery with BMS/Bluetooth for Ducato/Boxer/Jumper Seat

LiFePO4 Lithium Battery Eleksol 12.8V 300Ah Bluetooth and Integrated BMS

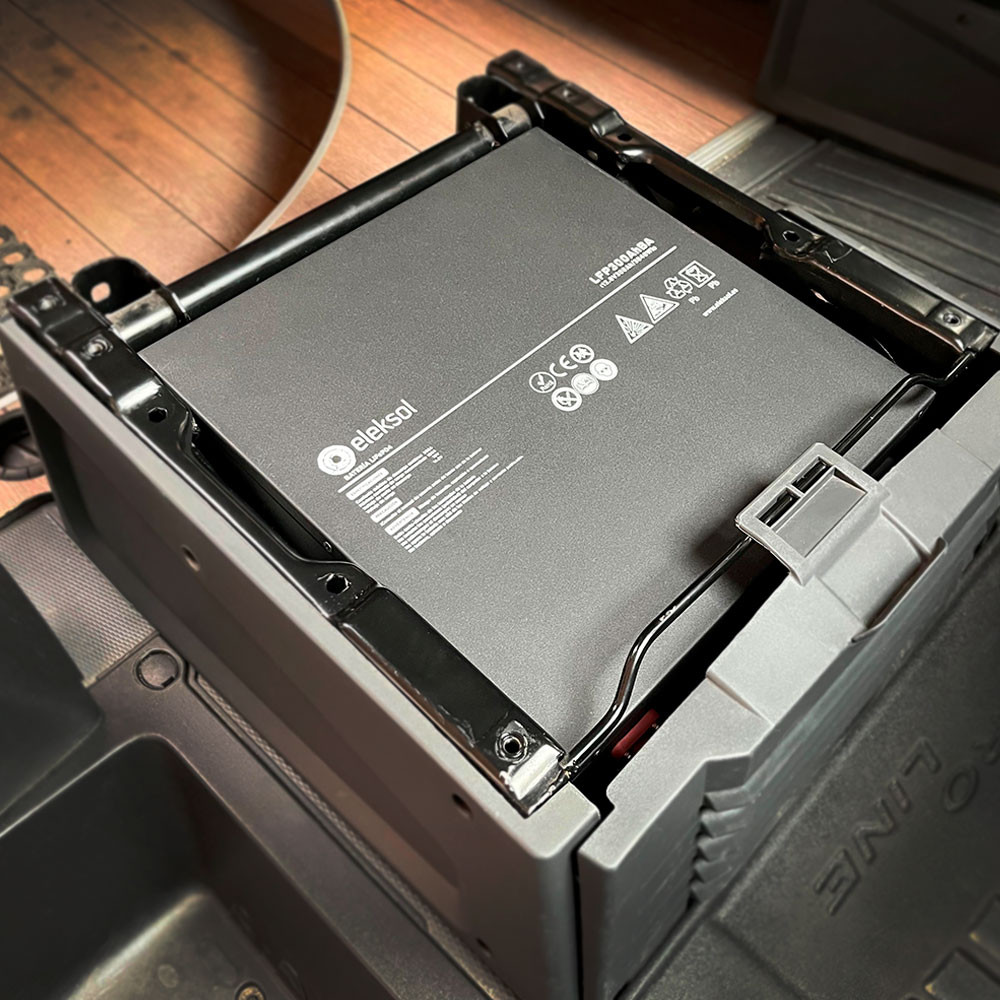

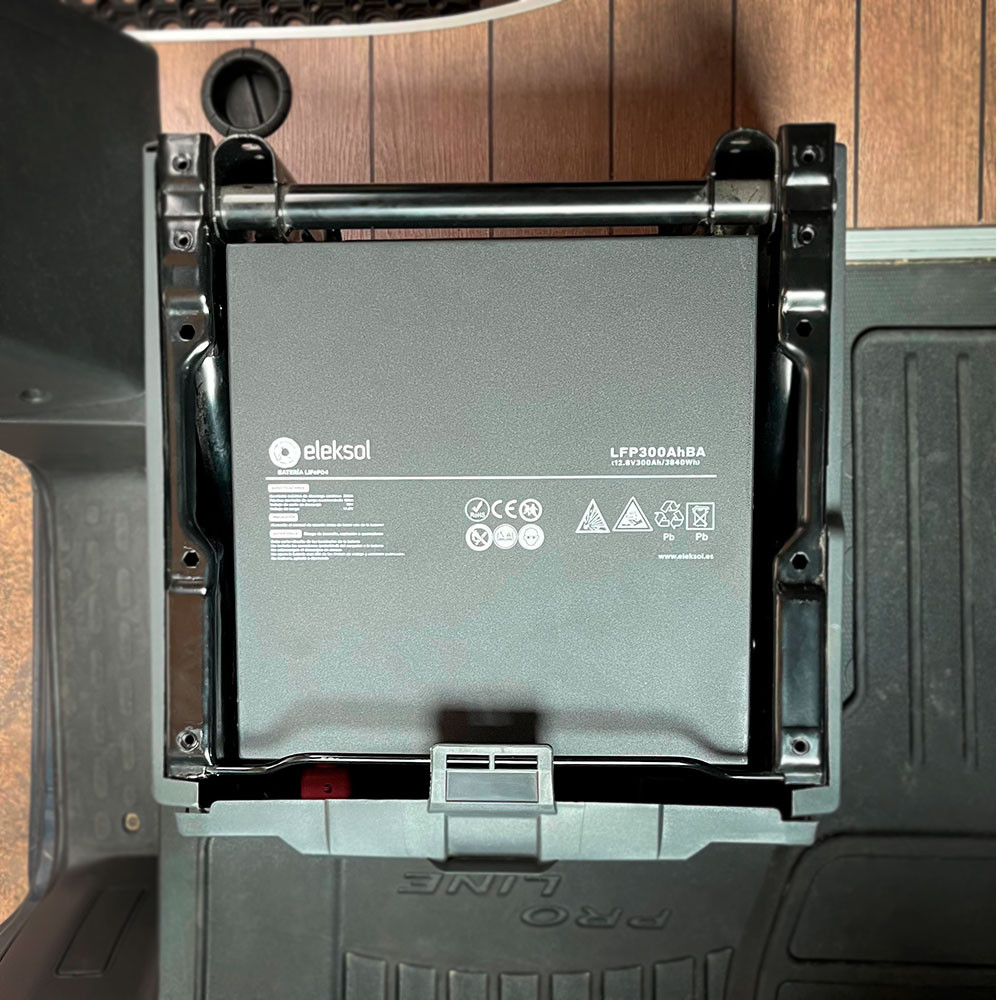

Specifically designed to fit under the seat of Ducato, Boxer, Jumper

Electrical Performance

• Nominal voltage: 12.8V
• Nominal capacity: 300 Ah
• Capacity @40 A: 300 min
• Energy: 3840 Wh
• Resistance: ≤20 mΩ @ 50% SOC
• Self-discharge: <3% / month
• Cells: Square LFP cell 3.2V100Ah

Mechanical Performance

• Dimensions (L x W x H): 390 x 360 x 160 mm
• Approximate weight: 33 kg
• Terminal type: M8
• Terminal torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
• Enclosure material: Metal
• Enclosure protection: IP65

Discharge Performance

• Continuous discharge current: 100 Ah
• Maximum continuous discharge current: 200 Ah
• Maximum discharge cut-off current: 600 A (5 ~15 ms)
• Discharge cut-off voltage: >10 V
• Reconnection voltage: >11.2 V
• Short-circuit protection: 200 ~ 600 μs

Charge Performance

• Recommended charge current: 60Ah
• Maximum charge current: 150Ah
• Charge cut-off voltage: <14.6V
• Reconnection voltage: >14V
• Balance voltage: <13.6V
• Maximum batteries in series: 4

Certifications

• CE
• UN38.3
• UL1973 & IEC62133

Make sure that your vehicle’s electrical components, such as the charger, booster/relay, and regulator, are compatible with lithium battery technology before making your purchase. This will ensure safe and efficient performance.
