Second battery installation kit 100Ah with Victron automatic relay

Kit suitable for vans up to approx. 2014. (EURO5 or earlier).

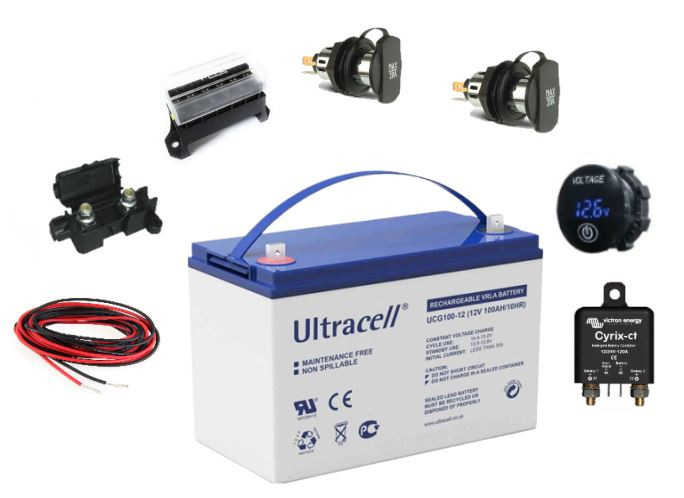

THE KIT INCLUDES:

• 1x GEL 100Ah battery. Dimensions (LxHxD): 328x235x172 mm (If it does not fit, the kit can be made with another battery).
• 1xVICTRON Cyrix 120 automatic separator relay.
• 1xdistribution box of 6 fuses.
• 5mt x 16mm2 cable (2.5mt red / 2.5mt black).
• 5mt x 2.5mm2 cable (2.5mt red / 2.5mt black).
• 1xmaximum fuse holder.
• 1x50A fuse. maxi.
• 2x12V socket.
• 1xbattery led tester.
• 15xAll necessary connections and fastons.
• 1xINSTALLATION DIAGRAM.

THE KIT DOES NOT INCLUDE: Installation in our workshop (it is a kit to be purchased and installed by the customer). If you want installation, send an email with the make, model and year of the vehicle.

ATTENTION: The installation of a second battery is a complex task that requires knowledge of car electricity and maybe even mechanics. We recommend you NOT to carry out this installation if you are not totally sure that you can do it without risk. The risks of making a bad installation of the second battery range from a short circuit and electrical failure in the van to its fire.

If you need it, we have our own workshop with first-rate official electro-mechanics with a lot of experience in this type of installation.

This pack includes

Red electrical cable from 2.5mm to 16mm (choose section)
1m/16mm
REF: 131R016.R100-16mm - Amount: 3

Black electrical cable from 2.5mm to 16mm (choose section)
1m/16mm
REF: 131N016.R100-16mm - Amount: 1

50A fuse holder
.
REF: R81027 - Amount: 1

MIDI Fuses 50A 5pcs
.
REF: R81028 - Amount: 1

Cable lug, 16 mm
Ø 8,20/16mm
REF: IFCRL404903 - Amount: 8

VICTRON Cyrix-CT 120Ah automatic relay with start assist
.
REF: DNT-537 - Amount: 1

Gel Battery 100Ah UCG ULTRACELL
.
REF: UCG100-12 - Amount: 1

Red electrical cable from 2.5mm to 16mm (choose section)
1m/2,5mm
REF: R810515-2,5mm - Amount: 3

Black electrical cable from 2.5mm to 16mm (choose section)
1m/2,5mm
REF: R810525-2,5mm - Amount: 3

Fuse holder for 6 fuses
.
REF: R81089 - Amount: 1

Standard fuse
Fuse 7.5A
REF: IFC420107 - Amount: 6

Female flat connectors, flat receptacles
Cable from 0.5 to 2.5mm
REF: IFCRL404006 - Amount: 7

12V 20Ah screw socket
.
REF: R81177 - Amount: 2

Terminal redondo aislado orificio
.Ø 6,4 mm.
REF: IFCRL402306 - Amount: 6

Voltmeter 5-48V with threaded end
.
REF: ABF12V-VOL1 - Amount: 1
