Skylight DOMETIC
Skylight DOMETIC Midi Heki 70x50
Skylight with lever, blind and mosquito net integrated.
Double tinted acrylic glass.
Measurements: 700x500mm (width x height).
For ceiling thicknesses up to 30-34mm.
For ceiling thicknesses up to 60mm, the mounting kit is necessary.
Choose the desired color from the dropdown list below. (with or without permanent ventilation)
For the installation, this butyl will be necessary to make the seal and prevent the entry of water (1 bottle for 40x40 skylights, perhaps 2 bottles if the ceiling is very irregular. At least 2 bottles for larger skylights). It will also be necessary 1 bottle of this Sika to make a thin outer profile and prevent the butyl from coming out through the contour (with 1 bottle you can make the contour of more than one skylight).

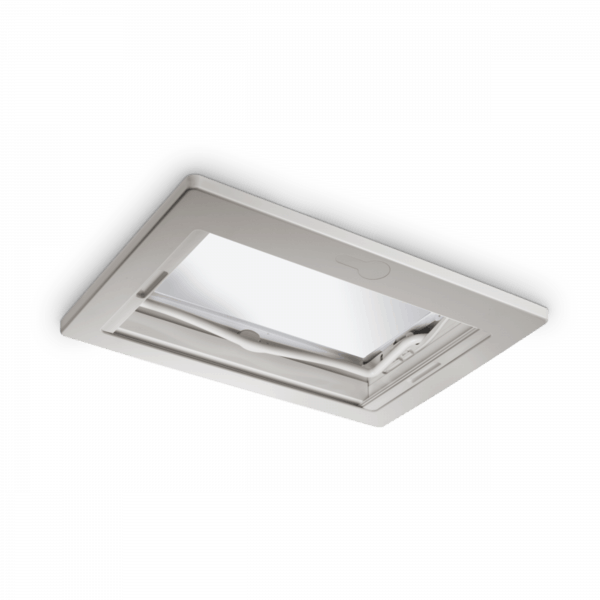

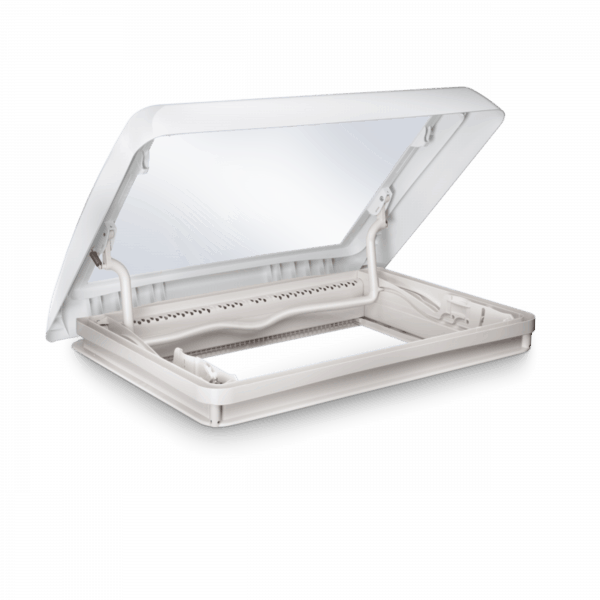

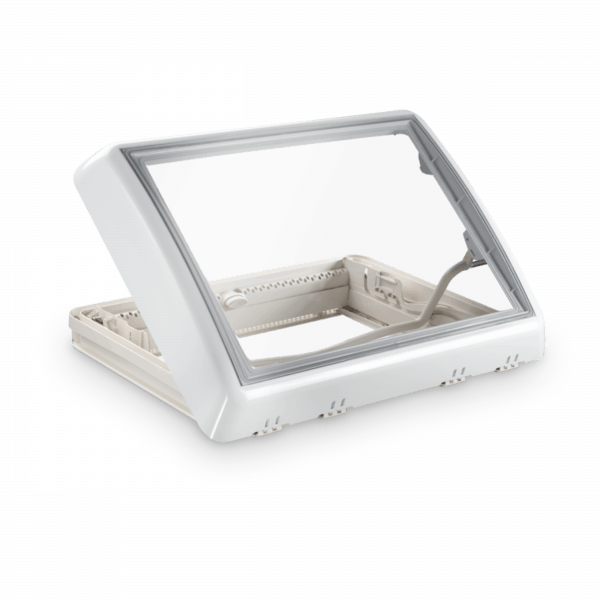

The Dometic Midi Heki roof window includes a dome with double acrylic glazing for insulation and a frame made from durable, weather-resistant ASA plastic.
It can be opened in three different positions.
The inner frame is equipped with a separate adjustable blind and fly screen to protect you from sunlight and insects.
PRODUCT DIMENSIONS
Show Product Depth Dimensions [mm] - 617mm
Dimensions product height 617 mm
Product width dimensions 858 mm
Opening height 500.00 mm
Opening width 700.00 mm
Minimum thickness of standard fastening material 30 mm
Max. thickness of standard fastening material 34 mm
Possible minimum material thickness 25 mm
Possible maximum material thickness 29 mm
Net weight 8kg
