VICTRON PHOENIX 12V 375W inverter

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable required).

• Apple and Android smartphones, tablets, mackbooks and other devices (VE.Direct to Bluetooth Smart dongle required) Fully configurable:

• Alarm trigger levels and reset for low battery voltage.

• Levels of disconnection and restart due to low battery voltage.

• Dynamic trip: load-dependent trip level.

• Output voltage.

• Frequency 50 Hz or 60 Hz.

• On/off of the ECO mode and level sensor of the ECO mode Monitoring:

• Input/output voltage and current, % load and alarms.

Proven Reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, either due to overload or high ambient temperature.

High starting power Needed to start loads such as converters for LED lamps, halogen lamps or power tools.

ECO mode

In ECO mode, the inverter will go into standby when the load drops below a predetermined value (minimum load: 15W).

Once in standby, the inverter will activate briefly (adjustable; default: every 2.5 seconds).

If the load exceeds the predetermined level, the inverter will stay on.

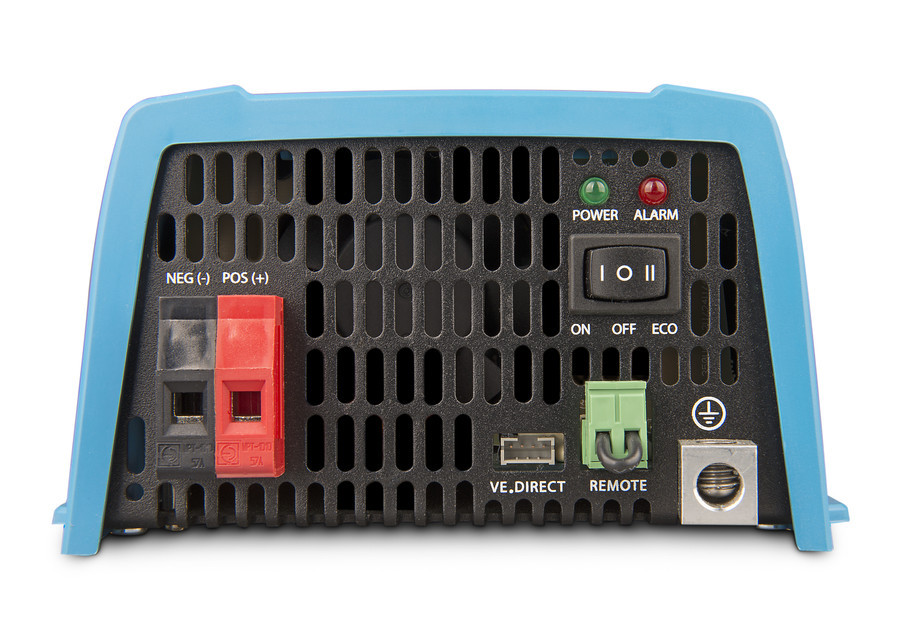

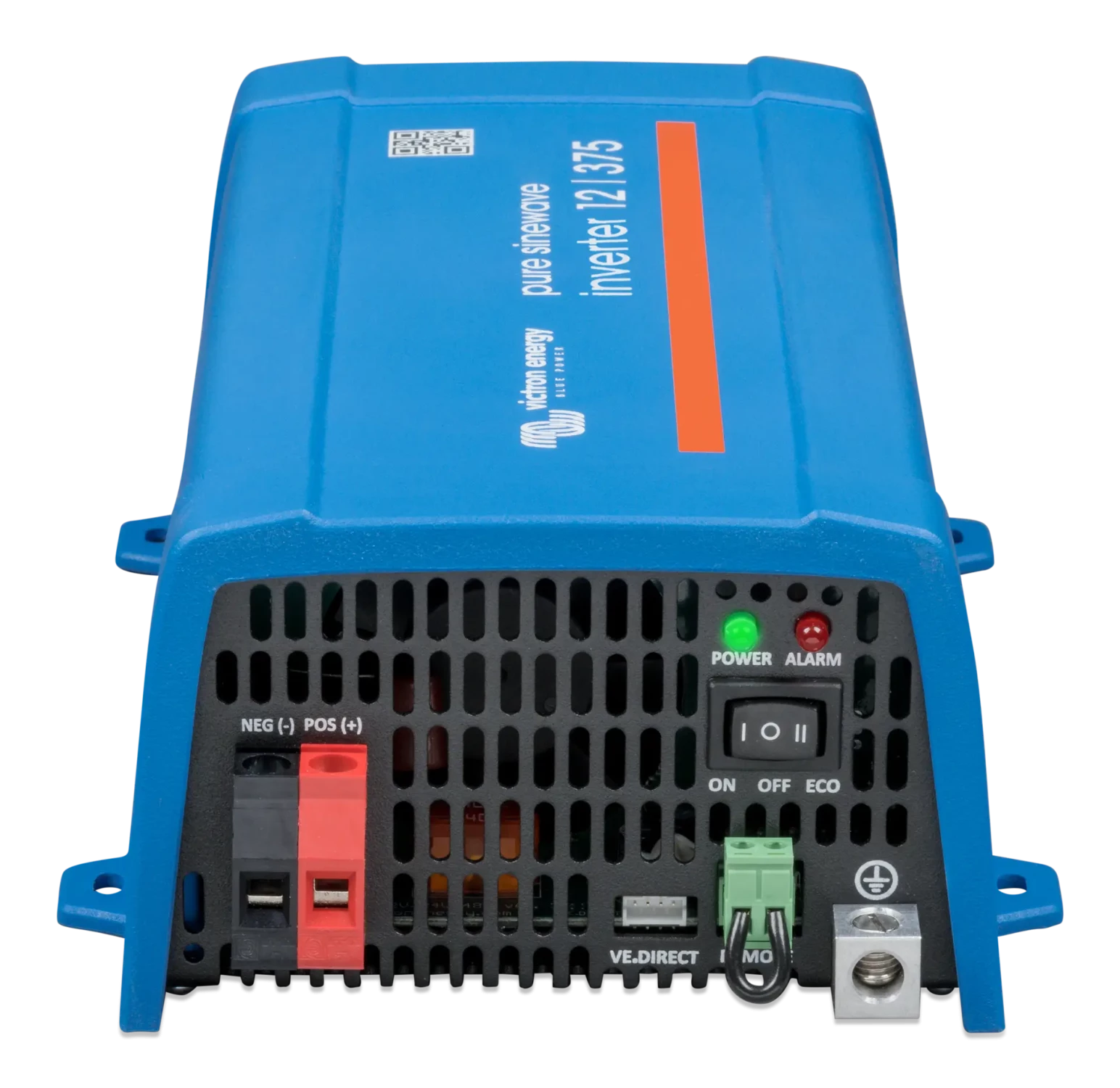

Remote on/off switch

A remote On/Off switch can be connected to a 2-phase connector or between the battery positive and the left contact of the 2-phase connector.

Diagnostic LEDs

To transfer the load to another AC source: the automatic transfer switch

For our lower power inverters we recommend our Filax automatic transfer switch. The switching time of the "Filax" is very short (less than 20 milliseconds), so that computers and other electronic equipment will continue to work without interruption.
