Pure Sine Wave Inverter

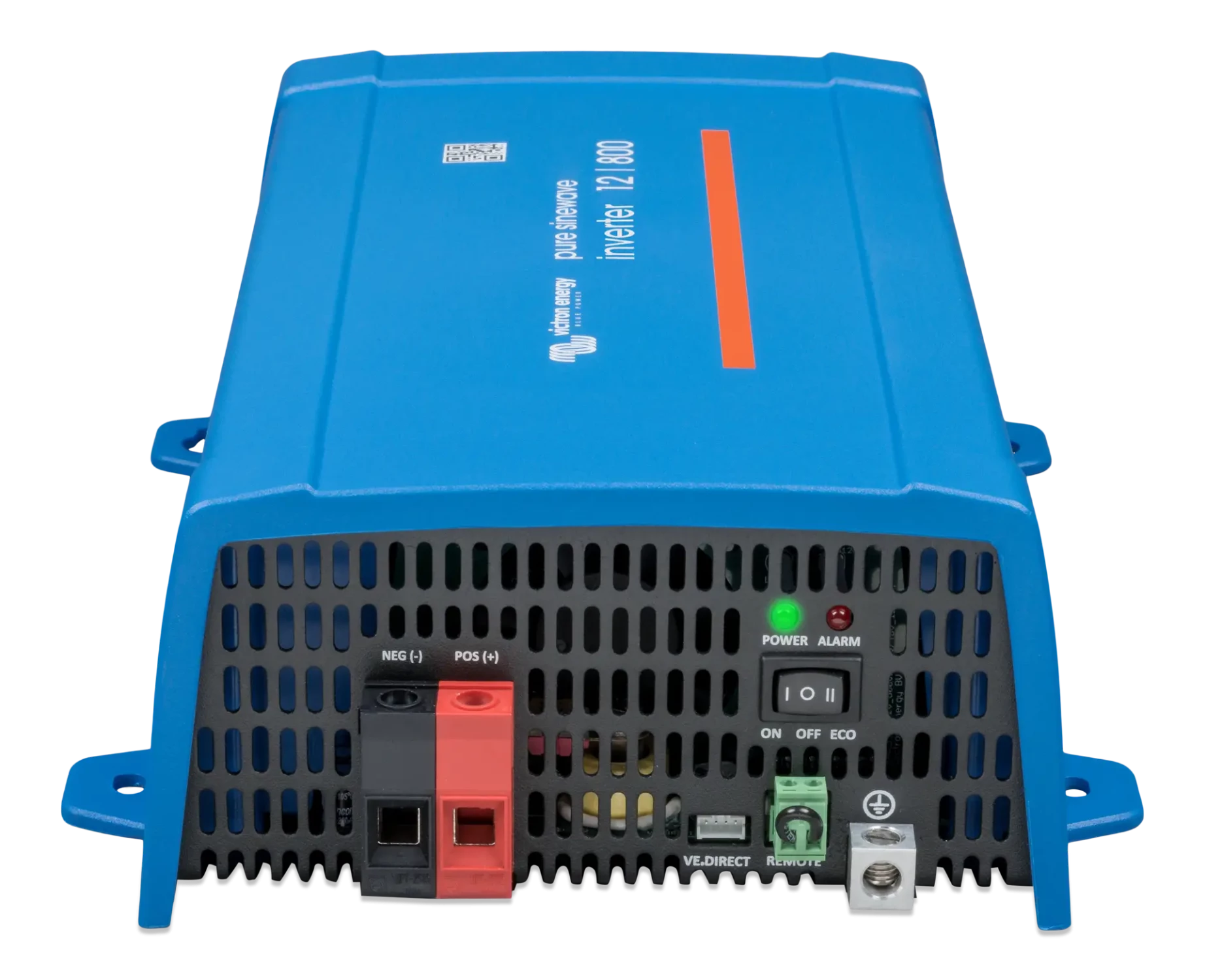

VICTRON PHOENIX 12V 800W inverter
Output Power: 800 VA.
Battery Input Voltage: 12 V.
Adjustable Stop and Start Power in ECO Mode.
Input Voltage Range: 9.2 to 17 V.
Adjustable Charged Battery Detector.
Dimensions: 86 x 165 x 260 mm.
Weight: 3.0 kg.
IP 21 Protection Grade.

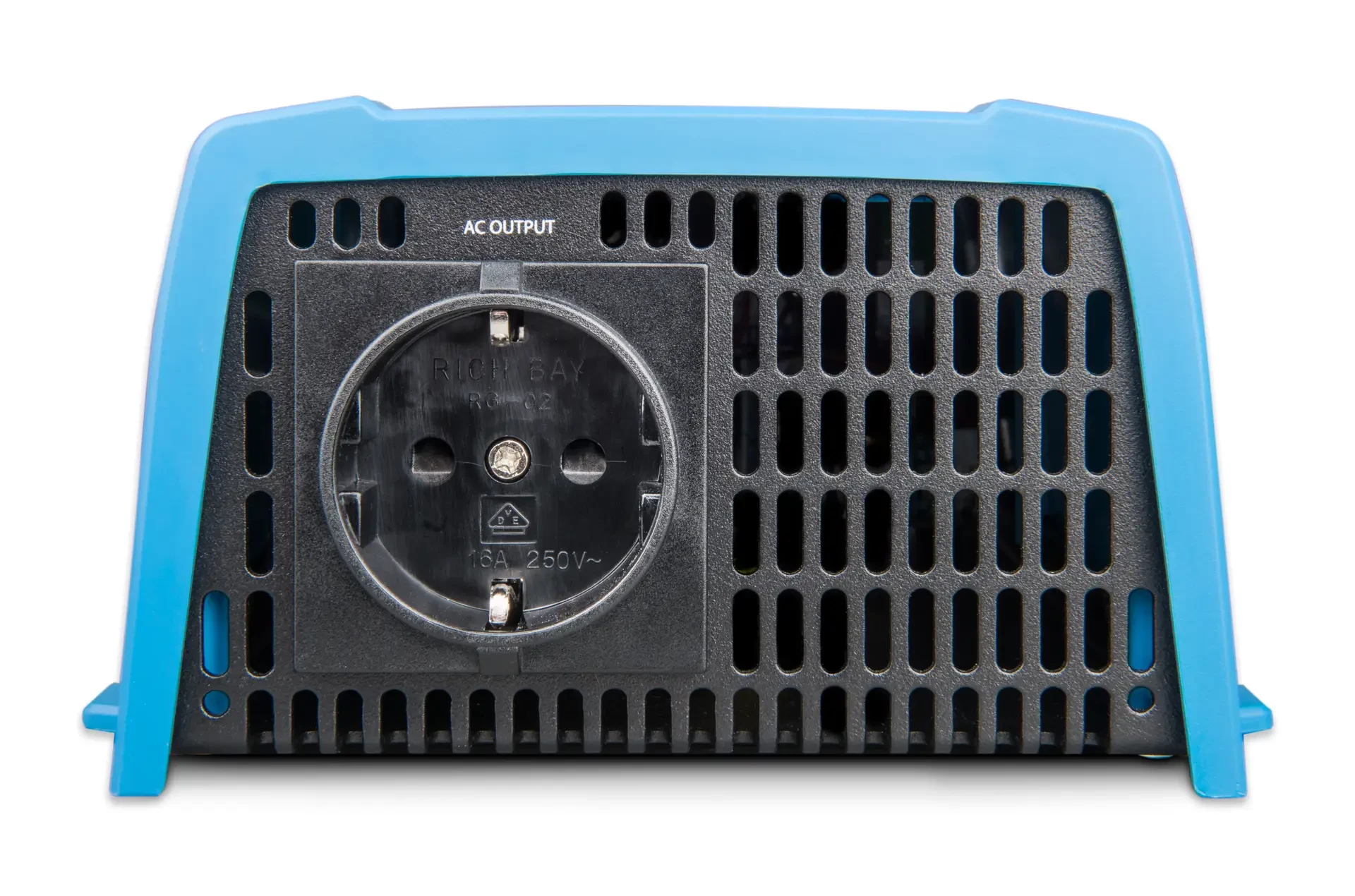

Power Outlet: Equipped with Schuko power outlet.
Main Functions:
Converts direct current (DC) from the 12V battery to alternating current (AC) of 230V.
Nominal power of 800W, with the capacity to double to meet startup demands.
Sinus Max technology to power various electronic devices.
Connection and Control:
Communication port for access to status information.
Remote configuration via VictronConnect with a computer or mobile device.
RS-485 port for connection to a PC through the MK2 interface with VEConfigure software.
Possible connection to VENet, the control and power tracking system of Victron Energy.
Low Consumption Mode:
Low consumption mode activated when the load drops below the predetermined value.
Brief reactivation (adjustable) if the load exceeds the predetermined level.
