Solar Charge Controller

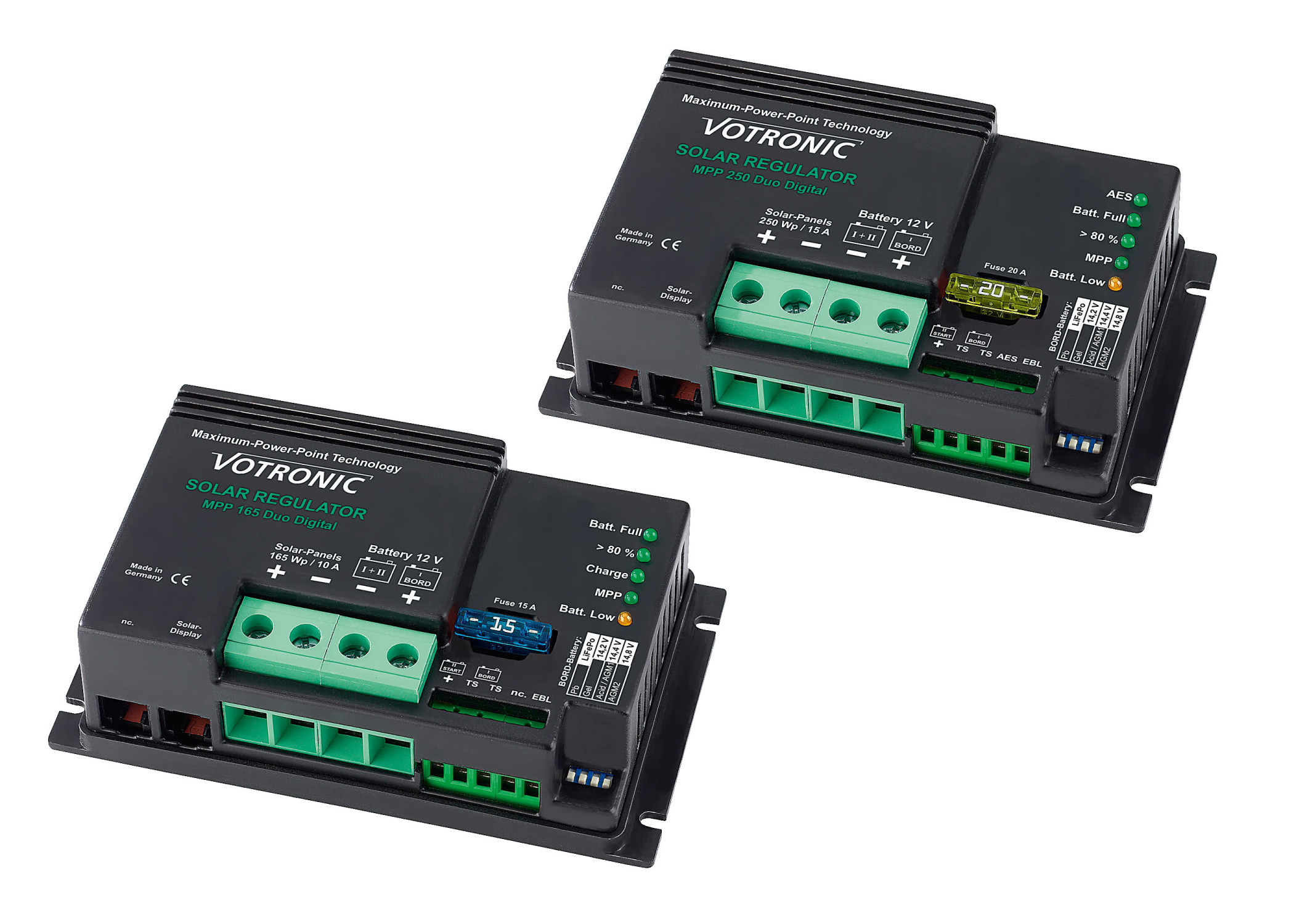

VOTRONIC MPP duo digital solar regulator (several options)
High quality MPP solar controller for motorhomes, caravans and boats.
Votronic solar regulators of the "MPP" (maximum power point) series with the "IU1oU2" charging characteristic are used as a link between the solar panel and the battery.
With MPP technology, the controller always automatically determines the maximum power output (MPP) of the solar modules several times per second. Then, it transforms the excess voltage of the solar module into a higher charging current for the battery (performed by high-efficiency high-frequency switching regulator technology). This charging current gain ensures shorter charging times and the best possible energy utilization of the solar system, up to 30% more charging efficiency.
CHOOSE THE APPROPRIATE OPTION IN THE DROP-DOWN LIST BELOW.
MPP solar controllers are fully automatic, maintenance-free and offer the following features:
Nominal battery voltage (AC) in [V]: 12
Solar module power max. [Wp]: Depending on the model
Solar module current max. [A]: According to model
Solar module voltage max. [V]: 50
Batt charging current I / II max. [A]: According to model
Load Characteristic: IU1orU2
Adjustable battery type: Acid, Gel, AGM, LiFePO4
Own consumption in [A]: 0004
Overload protection: yes
Backflow stop (night operation): yes
On-board network filter: yes
Number of load outputs: 2
Overload, overheat, reverse polarity protection: yes
Connection temperature sensor: yes
Compensation of voltage losses in the charging cables: yes
Solar Computer LCD connection S: yes
EBL solar power output display: yes
Temperature range [°C]: -20 to +45
Dimensions in [mm] without connections: 131 x 40 x 77
Weight [g]: 190
Standards: (CE)
Ambient conditions, humidity: max. 95% ambient humidity, non-condensing
