Auxiliary battery Lithium / Gel / AGM
Lithium Battery ELEKSOL 200Ah Bluetooth

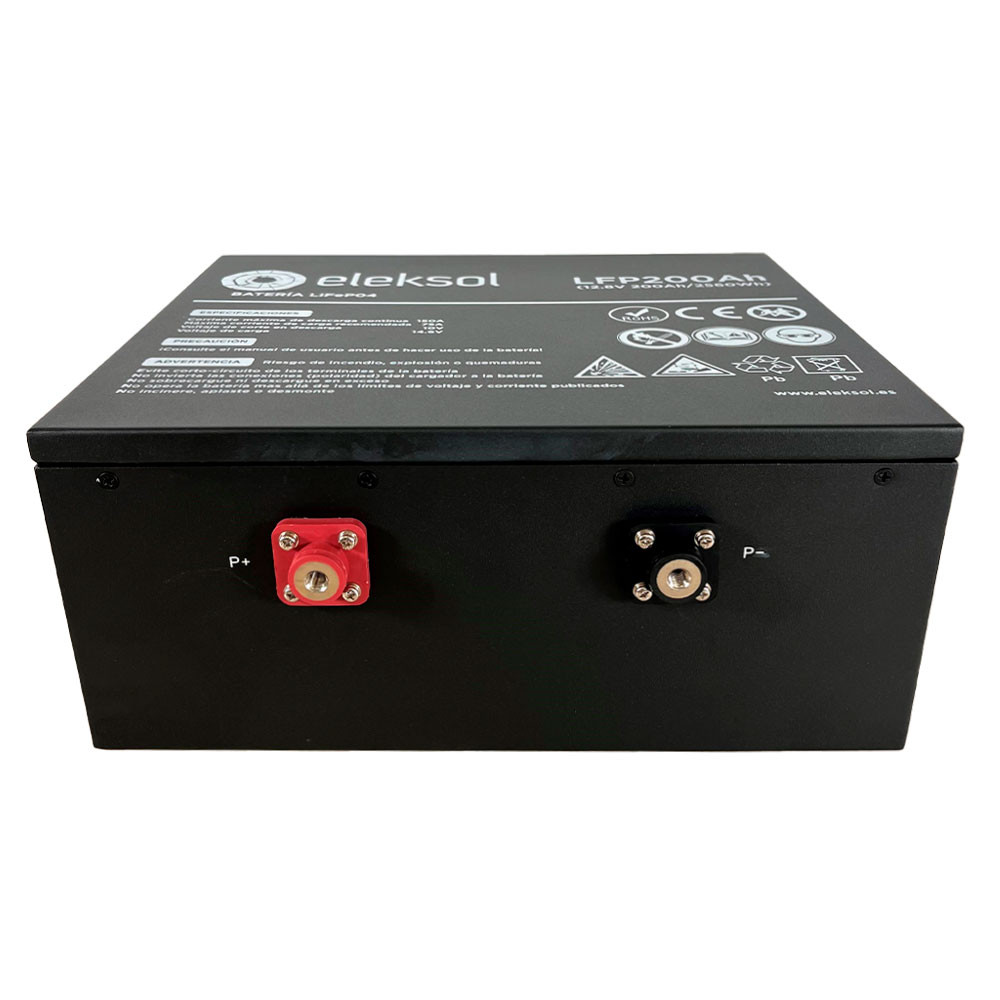

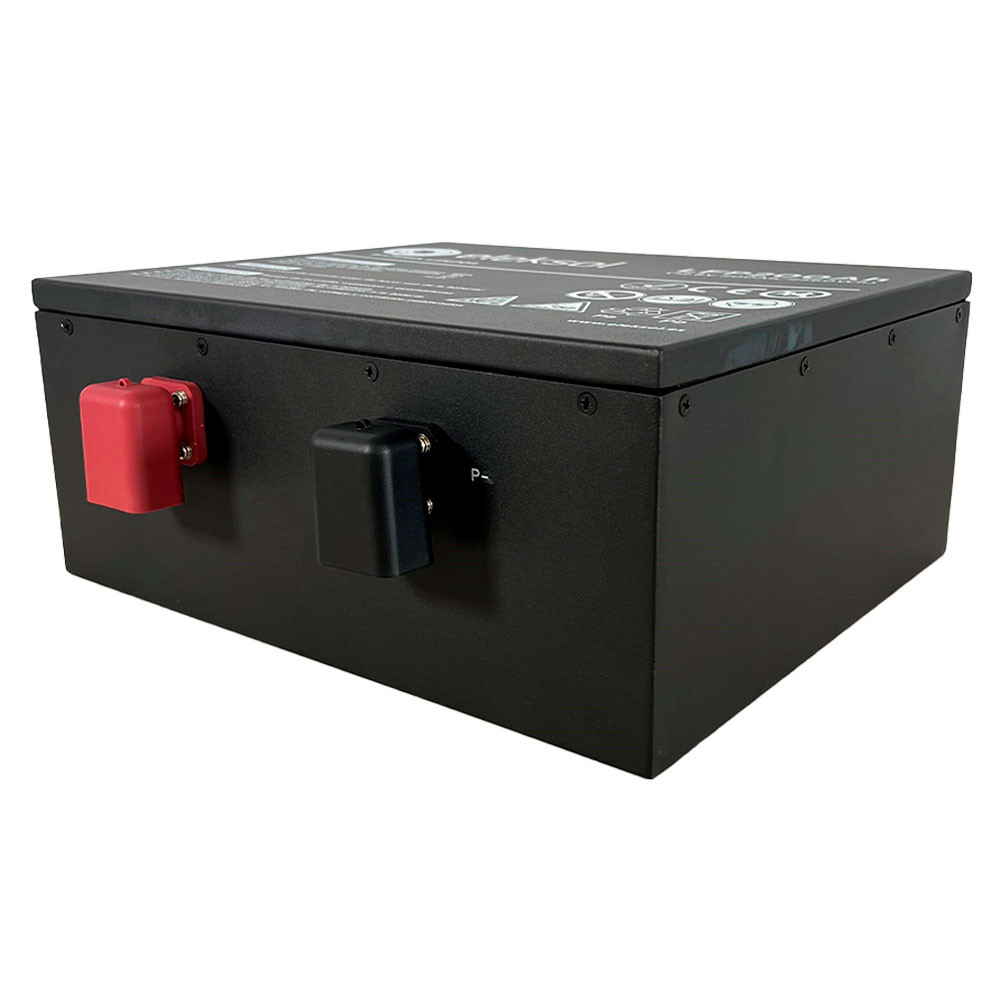

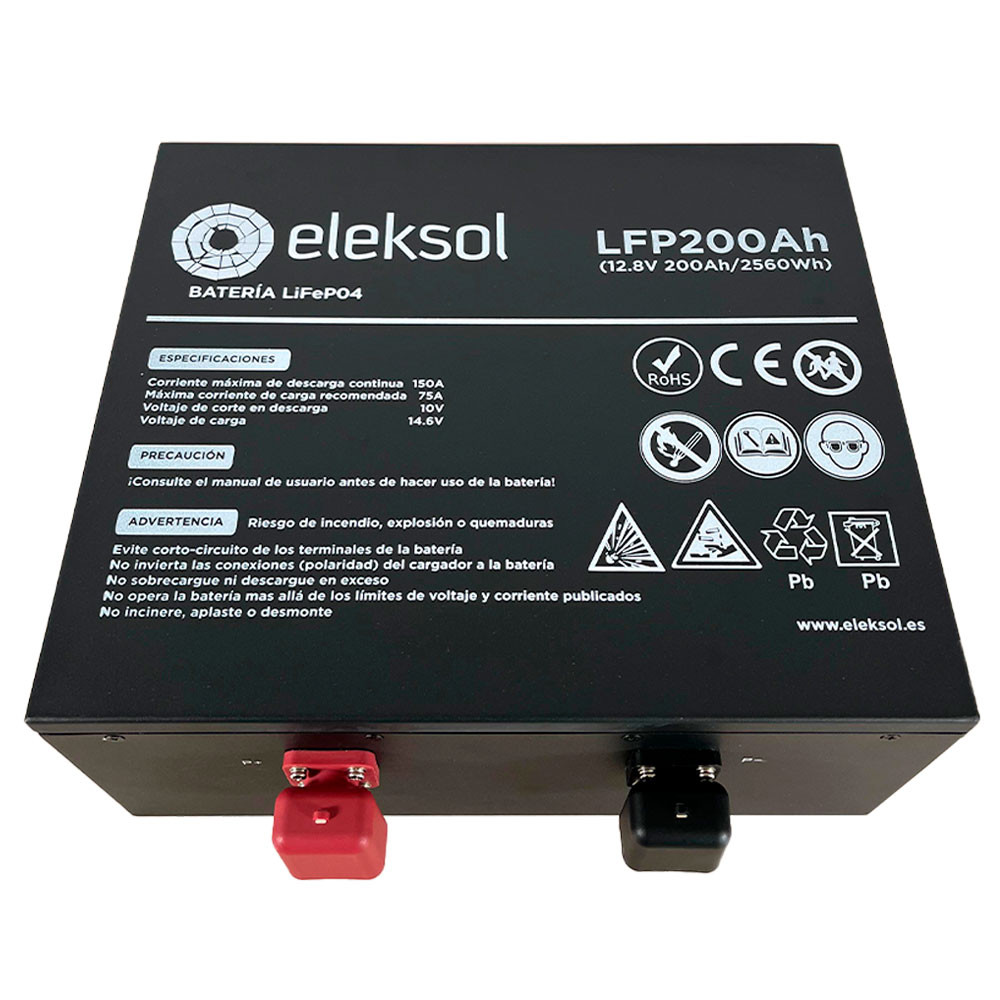

Eleksol 12.8V 200Ah LiFePO4 Lithium Battery Bluetooth and integrated BMS

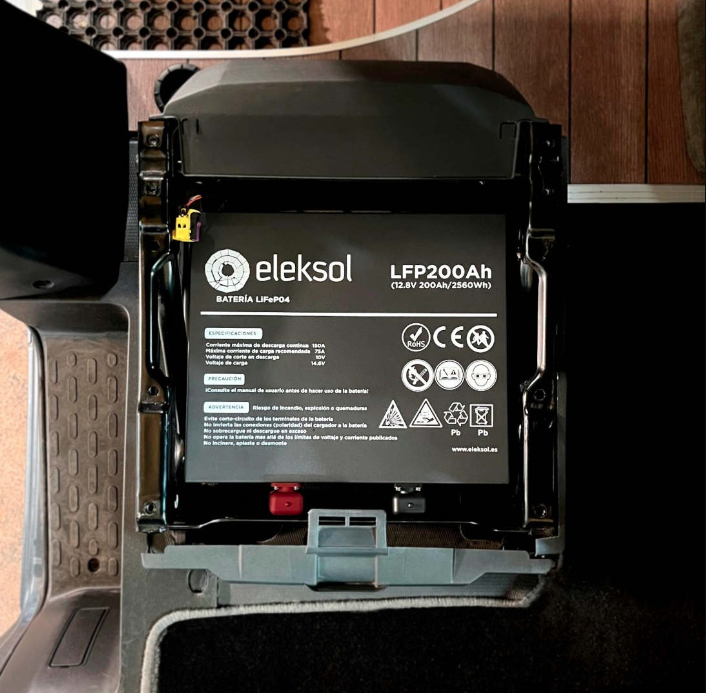

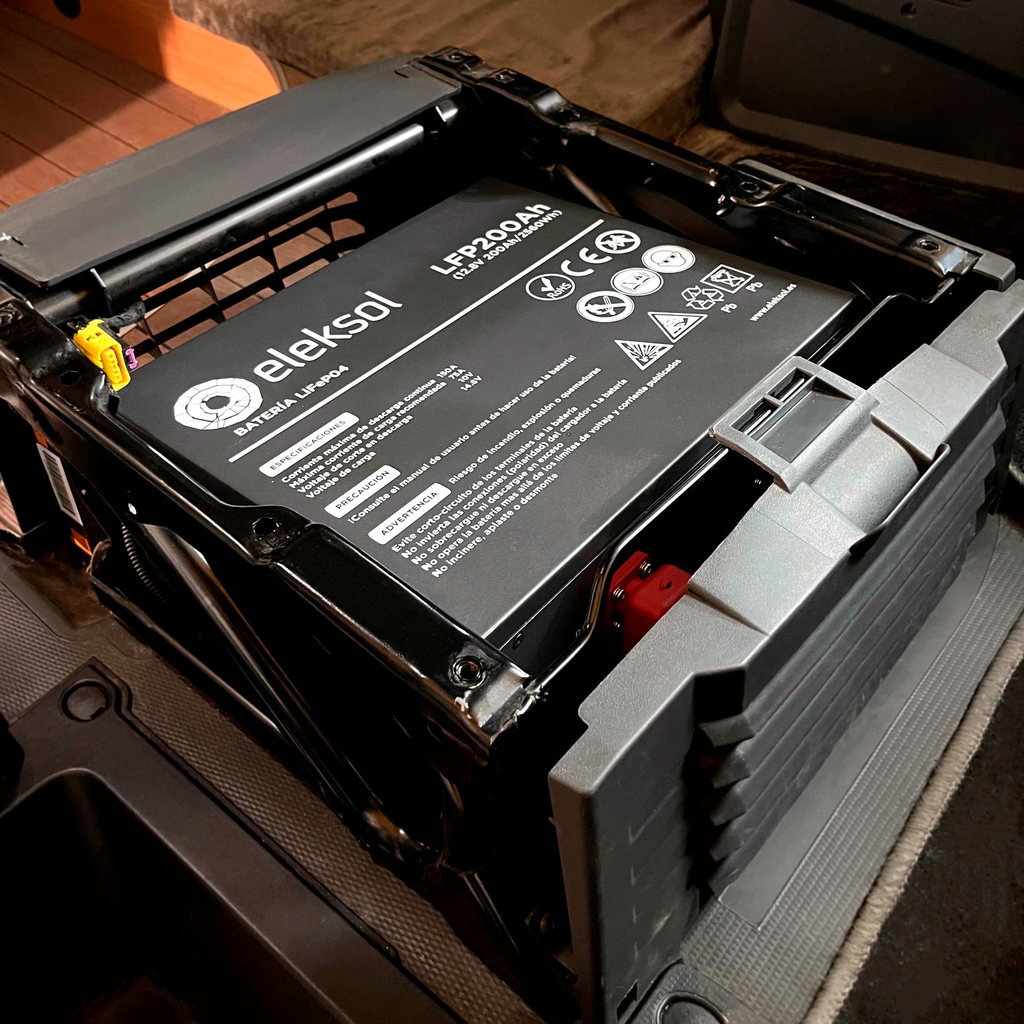

Specially designed to fit under a Ducato, Boxer, Jumper seat
Electrical Performance
Rated voltage: 12.8V
Rated capacity: 200 Ah
Capacity @40 A: 300 min
Energy: 2560 Wh
Resistance: ≤20 mΩ @ 50% SOC
Self-discharge: <3%/Month
Cells: LFP square battery 3.2V100Ah
Mechanical Performance
Dimensions (L x W x H): 357 x 338 x 152 mm
Approximate weight: 23.4 kg
Terminal type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Briefcase material: Metal
Enclosure protection: IP65
Download Performance
Continuous discharge current: 100 Ah
Maximum continuous discharge current: 200 Ah
Maximum discharge cut-off current: 600 A (5 ~15 ms)
Discharge cut-off voltage: >10V
Reconnect voltage: >11.2V
Short circuit protection: 200 ~ 600 μs
Charging Performance
Recommended charging current: 40Ah
Maximum charging current: 100Ah
Charge cut-off voltage: <14.6V
Reconnect voltage: >14V
Balance voltage: <13.6V
Maximum batteries in series: 4
Advanced lithium technology: LiFePO4 technology ensures superior performance, long lifespan, and fast charging.

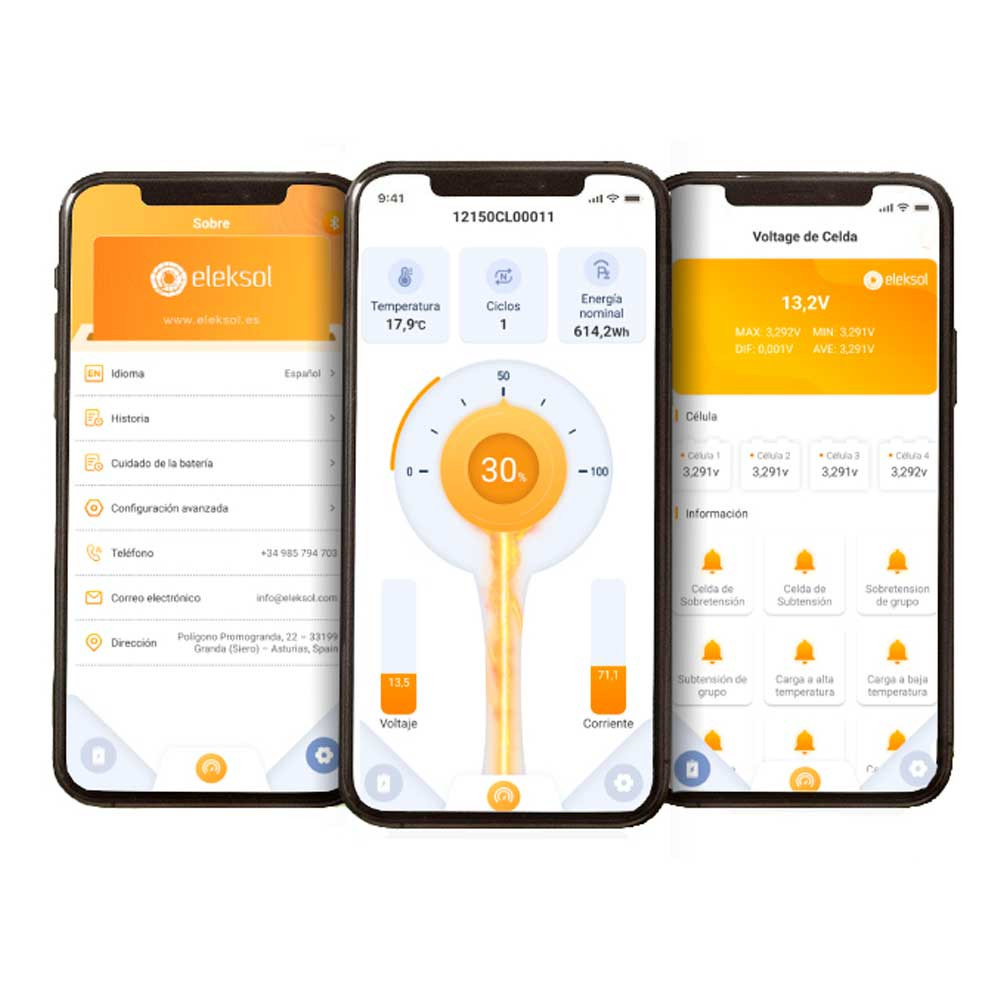

Built-in Bluetooth connection: Easily monitor the battery status via the Bluetooth app. Get real-time information on charge, voltage, and more for effective management.
Durable and compact design: Designed for mobility, this compact design optimizes space and ensures easy installation. Its durability makes it perfect for applications with over 4,000 lifecycles at 80% capacity.
Compatible with Victron Energy: Fully compatible with Victron Energy systems.
